Dry, Wet Spray Booths

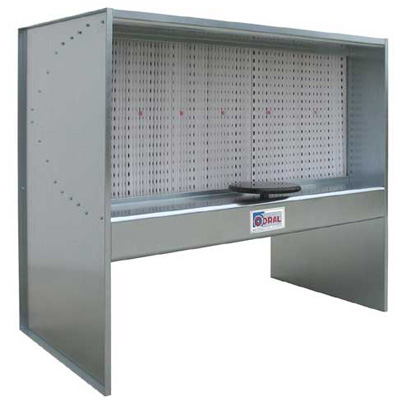

MINIDRY
Dry painting booths. Suitable for painting small pieces, small ranges or touch-ups. Built in two models (1 and 2 mt), with fan fitted with high-efficiency backward inclined spark-proof impellers and rotary piece-holder. Supplied as per standard with paper filter: further filtering stage in glass fibre available on request.

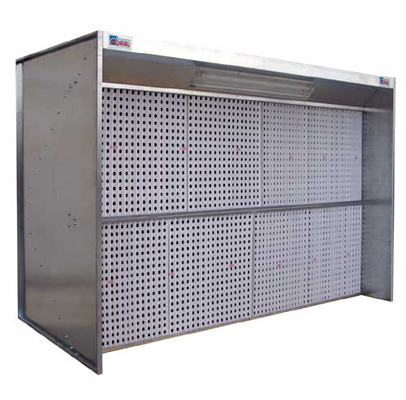

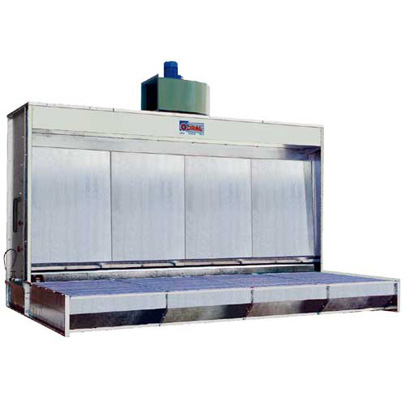

TECNODRY
Dry painting booths. Suitable for continuous painting of large pieces, with fan fitted with high-efficiency backward inclined spark-proof impellers. Available also with extended walls and roof (version B), which optimise the capturing speed at the distance of 1 mt from the extractor. Supplied as per standard with bulbs and paper filter: further filtering stage in glass fibre available on request.

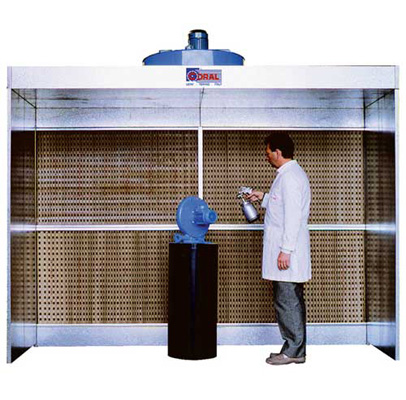

EURODRY
Dry painting booths. Valid for the same application as the Tecnodry; it has double filtering as per standard even with lower use of power thanks to the fan fitted with high-efficiency backward inclined spark-proof impellers, it can optimise extraction. Available also with extended walls and roof (version B), it is realised with two heights. Eurodry CA: the same characteristics as Eurodry are valid; it is the version with the additional activated carbon filtering stage with prefilter.

EURODRY CA
Eurodry CA: the same characteristics as Eurodry are valid; it is the version with the additional activated carbon filtering stage with prefilter.

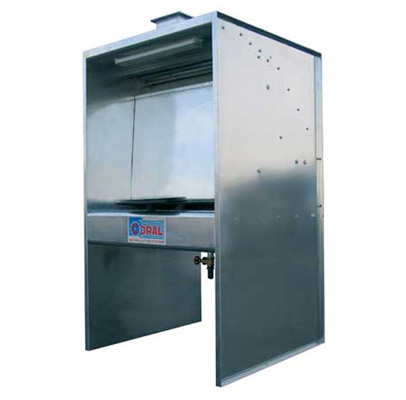

MINIVELO
Water veil paint spray booths. The same as the Minidry range, the type of fans used and applications; they have a double veil of water plus two-stage dry filter and have rotary piece holder.

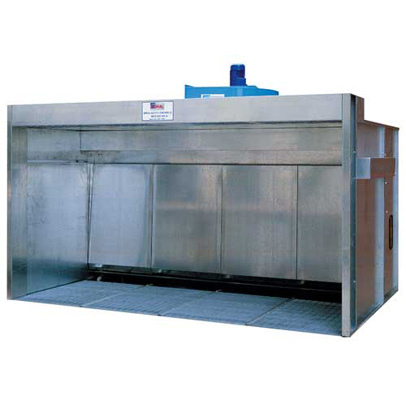

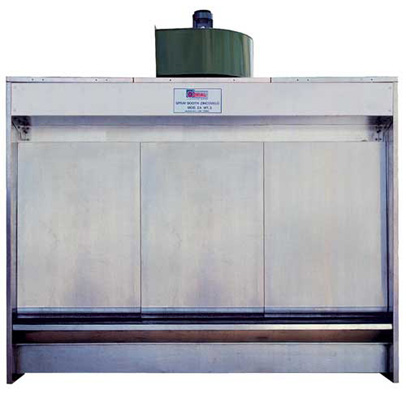

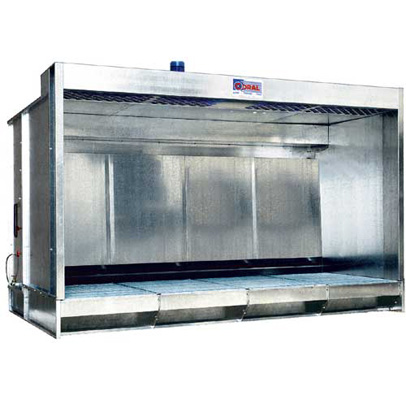

ZINCOVELO ZA
Standard water veil paint spray booths.

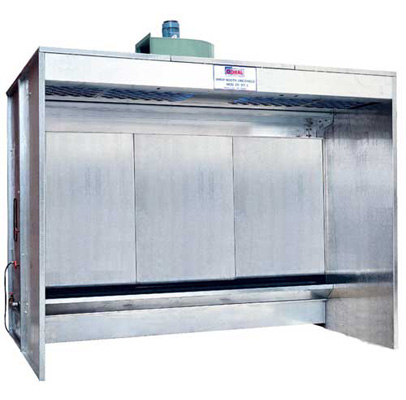

ZINCOVELO ZB
Standard water veil paint spray booths with extended sidewalls and roof.

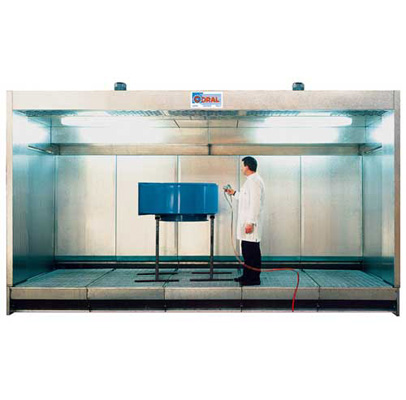

ZINCOVELO ZPGA
Water veil paint spray booths with an extended tank.

ZINCOVELO ZPGB
Water veil paint spray booths with an extended tank, sidewalls and roof.

ZINCOVELO ZPG
Water veil paint spray booths with an extended tank, water veil sidewalls.

ZINCOVELO ZSP
Water veil paint spray booths with an underground water tank, with or without sidewalls or roof.

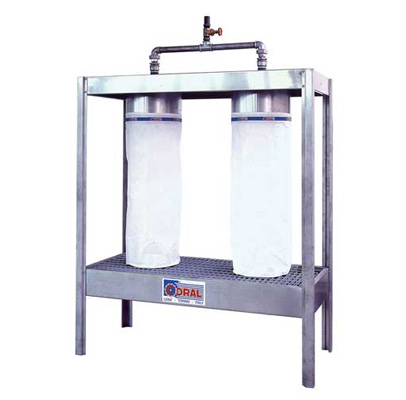

Paint Waste Collecting tank
"Separator filter for waste water slurry deriving from painting jobs. Via the electric pump with open impeller positioned in the painting booth water collection tank, the waters saturated with slurry and large suspended particles are extracted and are conveyed through piping to the bag holder tank. The dirty waters begin to flow through the two filtering bags, which allow to withhold the sludge, allowing the clear waters to escape and fall into the underlying tank of the separator. By falling from here, the water cleaned from slurry returns into the painting booth collection tanks. The mist eliminator is fitted with an overflow float, which blocks the pump of the slurry collection bags are filled."

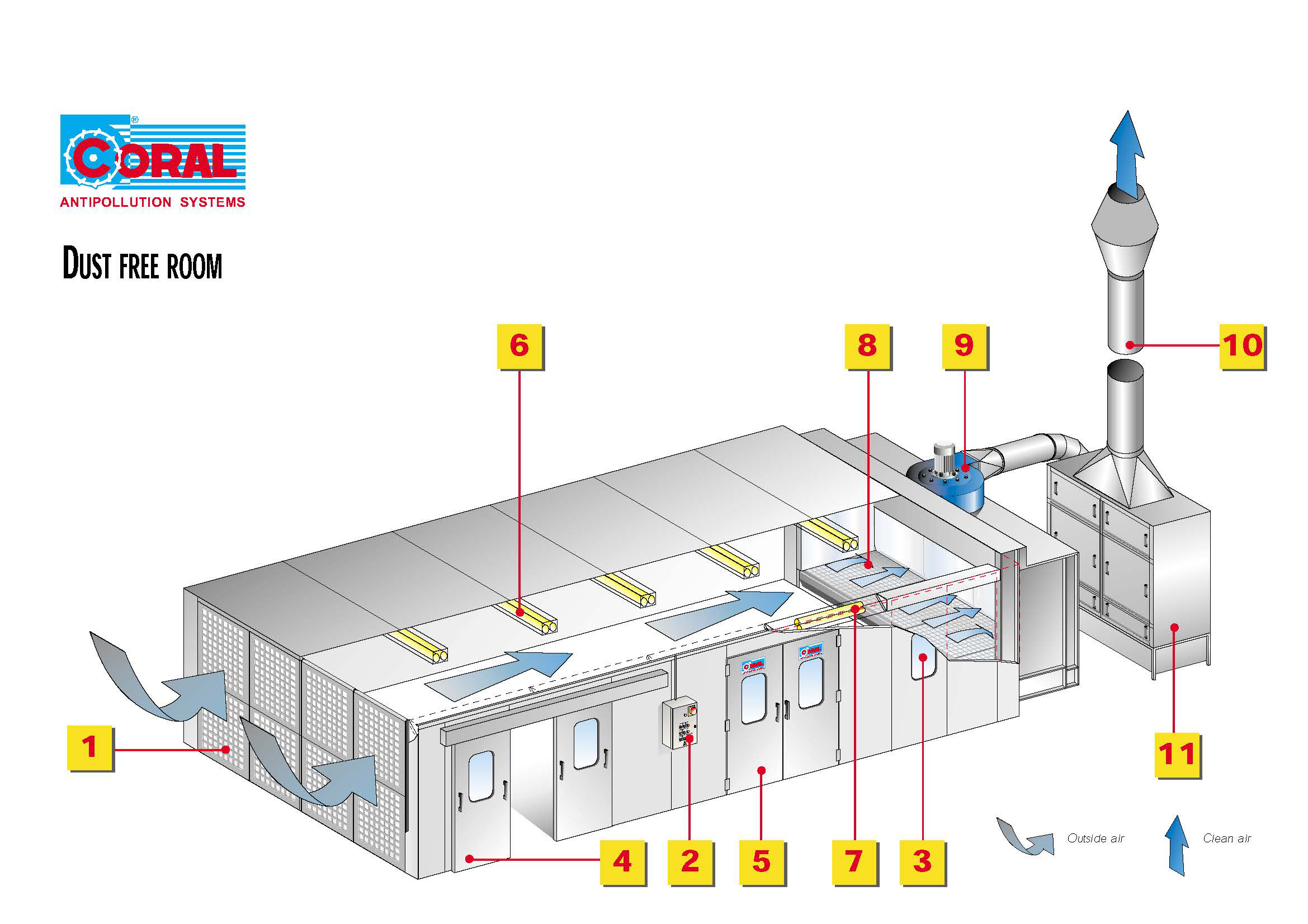

Dust Free Room

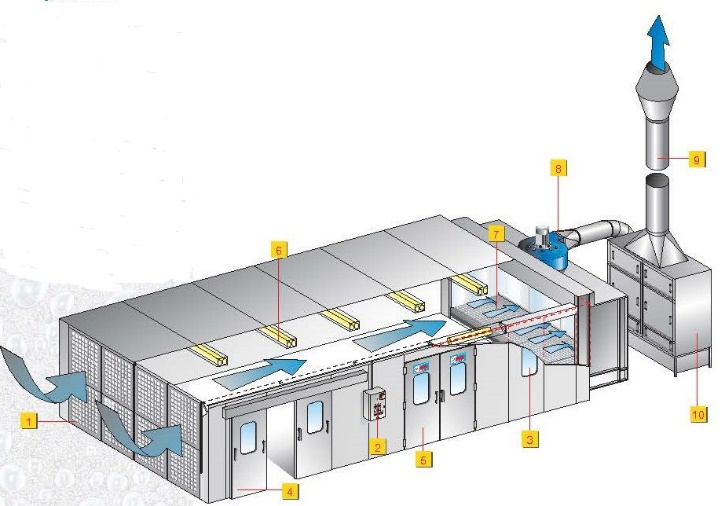

Dust-Free Pressurized Room
The CORAL pressurised cabins are mainly constituted of one or more ZINCOVELO water veil or TECNODRY / EURODRY dry wall cabins, of an environment realised by assembling modular sandwich panels, zinc plated or varnished externally (optional), an air integration filtering roof, a pressurisation unit CTA or hot air generator and a control panel.

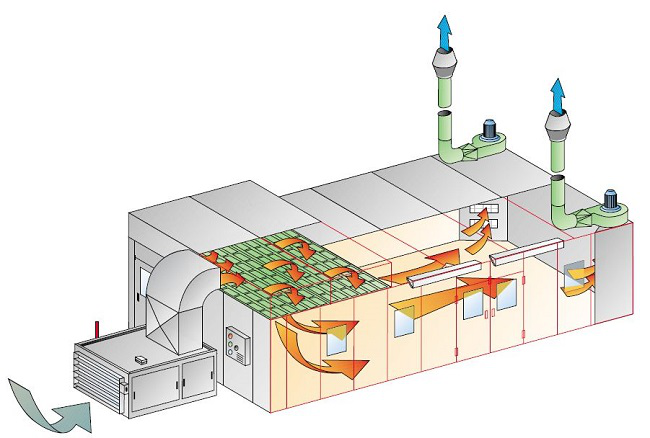

Drying Oven
The CORAL varnish drying ovens consist of an environment crea-ted by assembling modular panels TT in a sandwich manner.
