Dust Extraction Systems

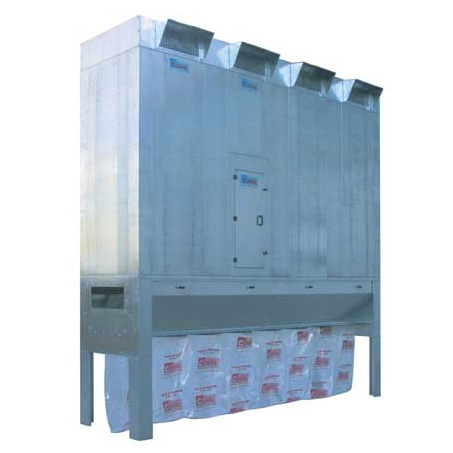

MFM
Modular filter for wood dusts and shavings. The MFM filtering unit is the most economical and less bulky solution in absolute for filtering dusts that require a large filtering surface (e.g. polishing wood). Obviously, the MFM dust collector is always valid for filtering small amounts of sawdust and small shavings to the point of requesting use of mini-silos or containment silos. Modularity: the MFM filters are built in prefabricated galvanised panels easily assembled in standard modular units respectively of 1 mt (MFM 1), 2 mt (MFM 2), 3 mt (MFM 3), 4 mt (MFM 4) and above. Given this peculiar feature of the MFM, they are totally modular, thus allowing to contain relative transport costs.

FM
Modular filter for wood dusts and shavings. The FM filtering unit is the most economical and less bulky solution for filtering dusts that require a large filtering surface (e.g. polishing wood). Obviously, the FM dust collector is always valid for filtering small amounts of sawdust and small shavings where the use of mini-silos or containment silos is not requested. Modularity: the FM filters are built in prefabricated galvanised panels easily assembled in standard modular units respectively of 1 mt (FM 1), 2 mt (FM 2), 3 mt (FM 3), 4 mt (FM 4) and 5 mt (FM 5). Given this peculiar feature of the FM, they are totally modular, thus allowing to contain relative transport costs.

AIRALT
Atex certified purifying filter for wood dusts and shavings with automatic cleaning in backwash mode. The cartridge filter with backwash cleaning is composed of filtering elements enclosed in an air-tight central body and is designed to be used in vacuum plants. The filter can be used correctly for handling fumes, dusts in the mechanical, chemical and pharmaceutical sectors.

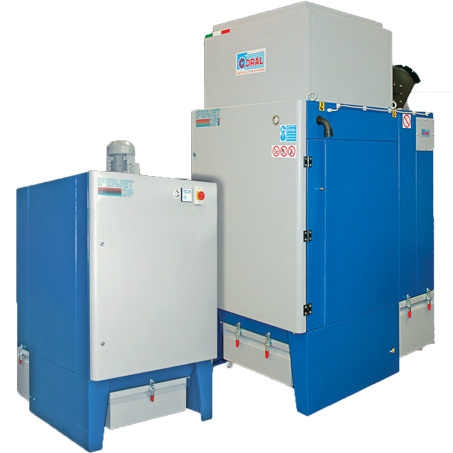

Iperjet
The new IPERJET DF filter equipped with horizontal cartridges is suitable for suction and filtration of welding fumes, fine and coarse dusts as well as of small quantities of chips, dusts/fumes from thermal cutting (Mod.Thermalcut). It is a filter unit to be installed inside the work premises. If allowed by local regulations, the filtered air can be recycled into the working area giving a considerable energy saving.

Iperjet DF MAX 9-12
The new IPERJET DF MAX 9-12 filter equipped with horizontal cartridges is suitable for suction and filtration of welding fumes, fine and coarse dusts as well as of small quantities of chips, dusts/fumes from thermal cutting. It is a filter unit to be installed inside the work premises. If allowed by local regulations, the filtered air can be recycled into the working area giving a considerable energy saving.

AIRCOM
Purifying filter for wood dusts and shavings with automatic cleaning in backwash mode. Operating principle: the AIRCOM sleeve filter by CORAL is a very efficient dust scrubber with completely automatic cleaning using compressed air. With particularly strong structure, in self-supporting modular panels, it is constituted of an upper extractor body with the compressed air cleaning system, a control unit that houses the filtering sleeves and a lower body with legs, unload hoppers and dusty air inlet connections.

AIRCOMPACT
Purifying filter for wood dusts and shavings with automatic cleaning in backwash mode. Operating principle The CORAL AIRCOMPACT mod. cartridge filter with backwash cleaning is made up from, cartridge filtering elements enclosed in an air-tight central body and is designed to be used in vacuum plants. The dusty air enters from the connection in the lower part of the hopper and, due to the effect of a sudden decrease in speed, the larger particles settle and end up in the relative collection bin. The smallest or lightest particles re-ascend the body, inside which the filtering cartridges are housed; the polluted air runs through the cartridges from the outside inwards, in a way that the dust deposits externally while the air moves along the cartridge and escapes purified.
